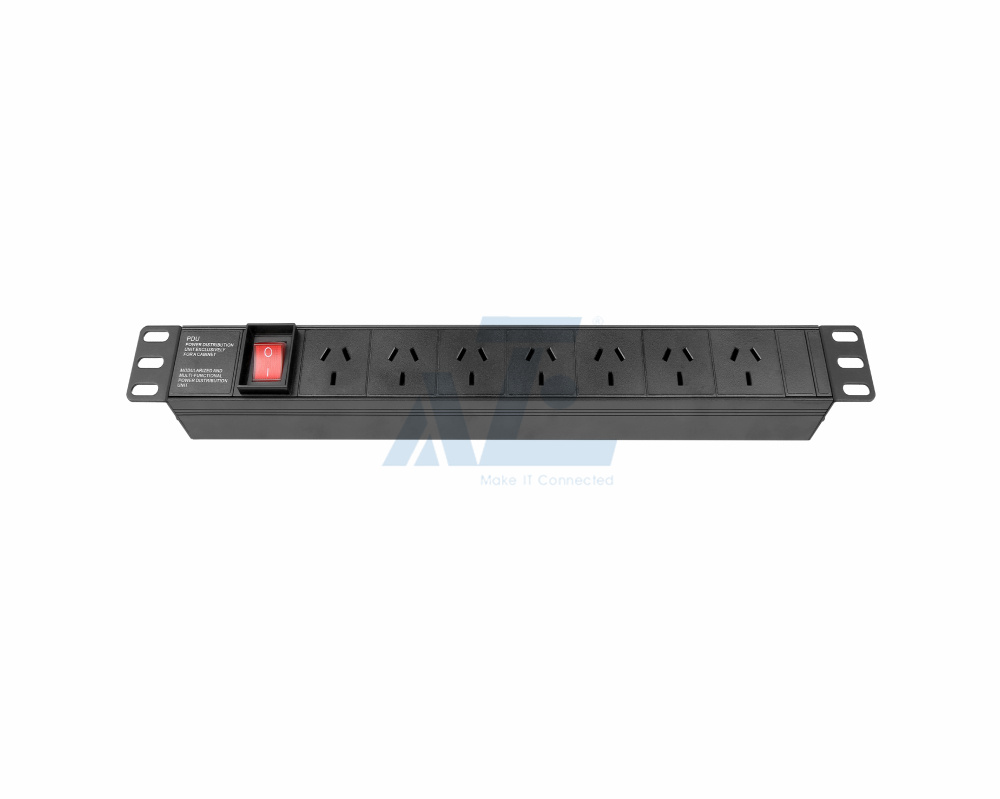

1RU 7 Way GPO Rack Mount PDU - Power Distribution Unit with IEC C14 Input
Model : PDU1U07AUMS
The power distribution unit provides a rack mountable power solution to server cabinet or telecom cabinet or other electronic devices at an affordable price.AZE provides a wide range of PDU( Power Distribution Unit). We have Horizontal 19inch rack mounted Power Distribution Unit or Vertical PDU, 6 to 24 way Rack Mount Power Rail. All of our surge protected PDU/ Power Rails are Australian Standard and suitable for data centre, server racks/ cabinet indoor or outdoor server racks.
- 1U rackmount Australia PDU
- Solid Aluminum chassis for durability
- Master Switch
PDU1U07AUMS Features
| Key Features | |
| Output Connections | (7) Australia Outlet |
| Nominal Output Voltage | 220V ~240V |
| Nominal Input Voltage | 220V ~240V |
| Input Connections | Australia plug |
| Cord Length | 6ft (1.8meters) |
Includes: Installation guide, mounting brackets or hardwares
Features & Benefits
| Structure and Configuration | |
| Material | High-grade aluminum or SECC steel |
| Rack-mountable | Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment. |
| Wide range of input and output connections | It provides different regions' input or output connection to distribute 120V, 208V, or 230V power to multiple outlets-Australia,British,French,Germany,IEC C13,IEC C19,NEMA 5-15R ,NEMA 5-20R,etc |
| Availablity function | For protect or control the devices, the PDU provides fuctions of master switch, 1P or 2P circuit breaker,surge protection, meter or overload. |
| Total cost of Ownership | |
| Low Cost Power Distribution | Provides a number of outlets to bring power to rack equipment at an affordable price. |
Our rack PDU are modular designed with Australian standard and suitable for the data center, server racks / cabinets indoor or outdoor server racks, they are also suitbale for home offices, small or large offices situation or industrial environment.

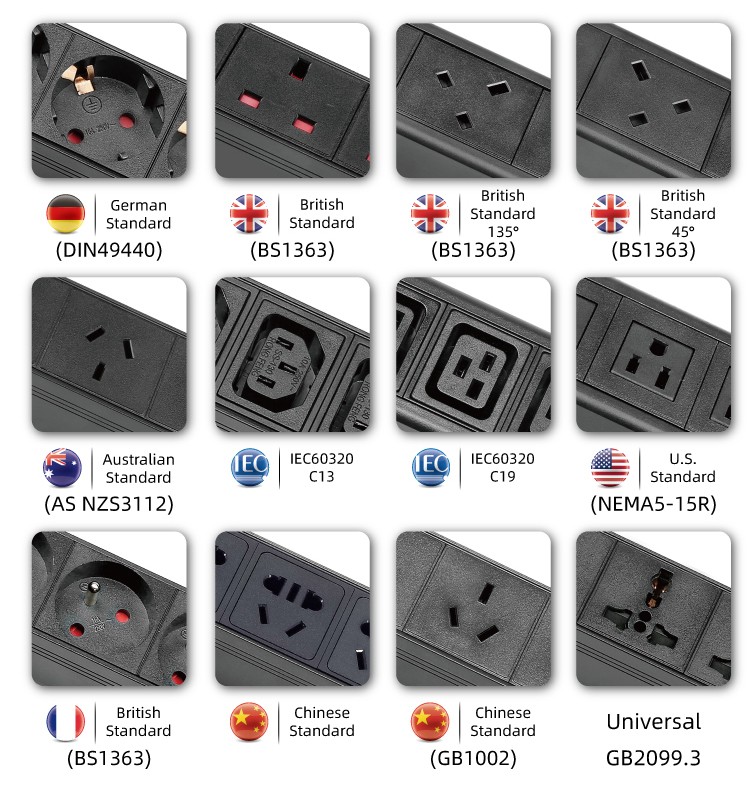

PDU Outlet Type Options

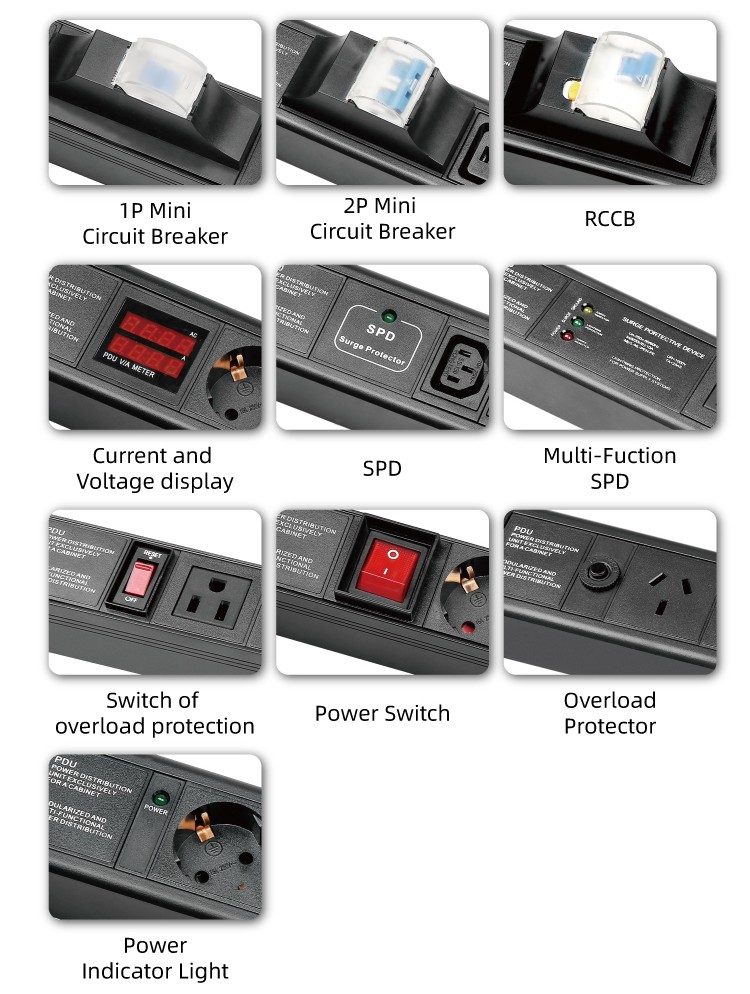

PDU Function Module Options

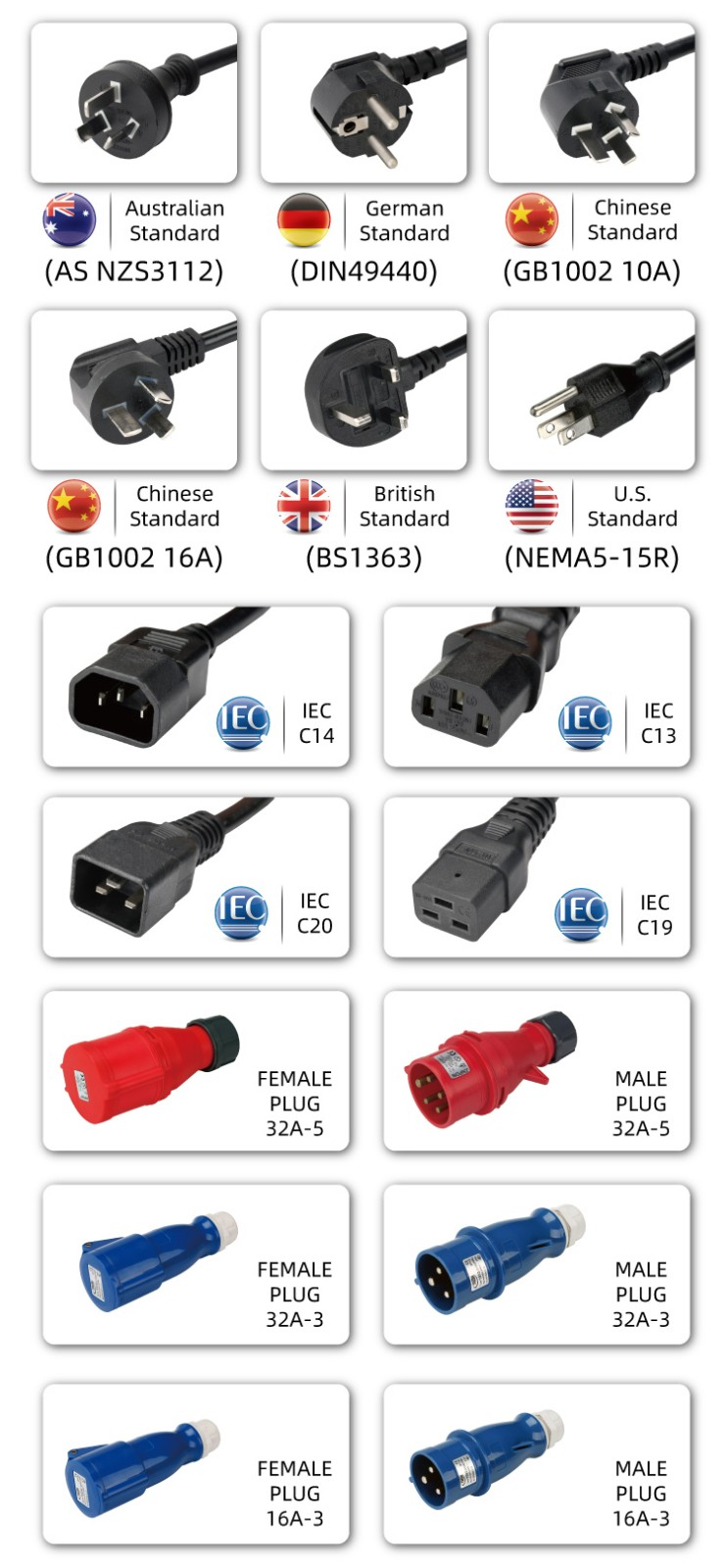

PDU Input Plug Selection Options
PDU Application
Specification
| Physical | |
| Color | Black |
| Material | Aluminum |
| PDU Form Factor | 1U Horizontal |
| Input | |
| Input Voltage | 220~240V |
| Maximum Input Current | 10Amp |
| Plug Type | Australia |
| Input Phase | Single Phase |
| Input Cord Length | 6ft. |
| Output | |
| Output Receptacles | (7) Australia |
| Output Nominal Voltage | 220~240V |
| Function | Master switch |
| Environmental | |
| Operating Temperature | 0°C to 550°C (32°F to 131°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Certifications | |
| Approvals | RoHS |
| Safety | CE |
| Warranty | |
| Standard warranty | 1 Year |
How to Order
Options
1U 8 Port Rackmount KVM Console- Integrated KVM Switch w/ 19inch LCD monitor
18U 30inch Wide x 30inch Deep IP55 Outdoor Enclosure with 500W Air Conditioner
48U Colocation Server Rack 4 x 10U 600mm Wide x 1200mm Deep Enclosure with Sides Black
42U Server Rack Enclosure 600mm x 1070mm w/ Sides Black
Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (9) C13 & (3) C19
12U 600mm Wide x 600mm Deep IP65 Wall Mount Outdoor Cabinet
24U Low-profile Switch-depth Wall Mount Rack Enclosure Cabinet, Hinged Back
18U 24inch Wide x 18inch Deep NEMA 4 NEMA4X Outdoor Enclosure
52U Custom Server Rack Cabinet Enclosures
Data Center Metered Rack PDU,Three Phase,(36) C13 & (6) C19 outlet,Circuit Breakers
Application
The PDU provides reliable power distribution from a UPS system, generator, or utility source to electronic equipment, servers, and network/telecom devices
- Network closet
- Data center
- Industrial environments
- KVM console
- Server Racks
- Outdoor Enclosures
