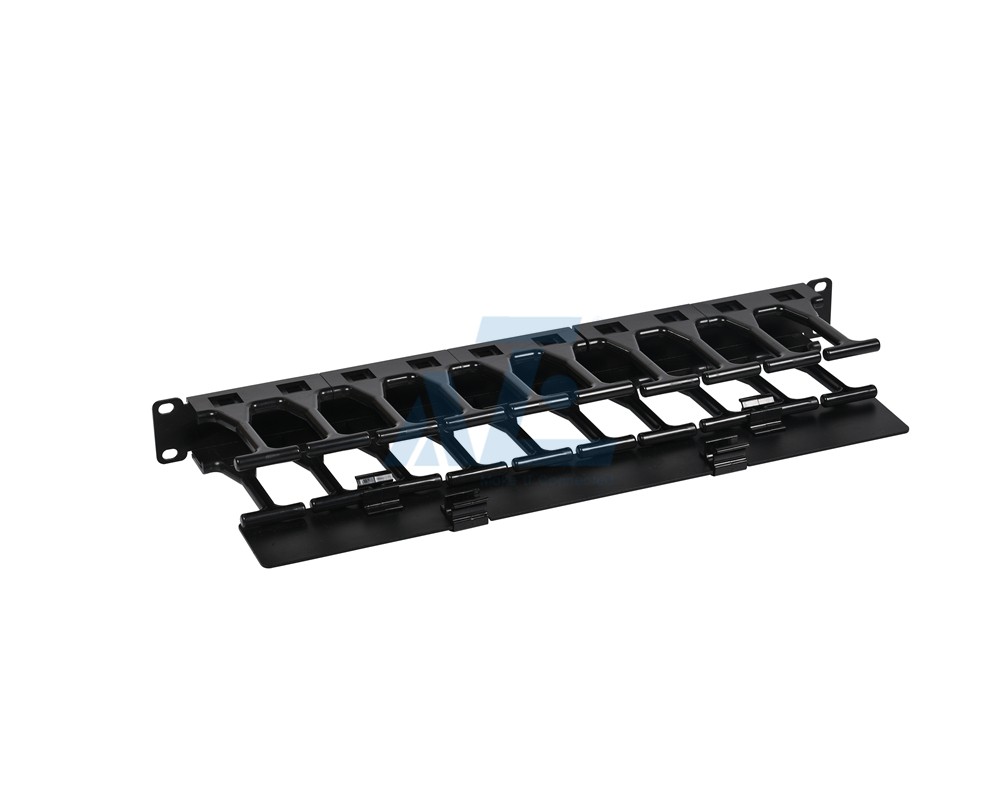

1U Horizontal Cable Manager,T-finger cable guide,Single-Sided with Cover
Model : RACABLEDUCT1UHD
1U High density horizontal cable manager with cover can organize power or data cables within a rack or enclosure.
- Helps eliminate cable stress for your rack enclosure cabinet.
- Required mounting hardware is included
- Fit into any EIA-310 19 inch rack or enclosure with square mounting holes
1U Horizontal Cable Manager,T-finger cable guide,Single-Sided with Cover
RACABLEDUCT1UHD Features
| Key Features | |
| Rack Height | 1U |
| Rack Mounting Width | 19" |
Features & Benefits
- Occupies 1U of rack space
- Horizontal cable routing front-to-back
- High capacity cable finger design
Specification
| Physical | |
| Color | Black |
| Unit Dimensions (WxDxH) | 19.02inches x 1.7inchesx2.5inches |
| Unit Weight | 1.6lbs. |
| Shipping Dimensions(WxDxH) | 20inchesx3.1inches x3.7inches |
| Shipping Weight | 2lbs. |
| Certifications | |
| Approvals | EIA/ECA-310-E, RoHS |
| Safety | CE |
| Warranty | |
| Standard warranty | 1 Year |
How to Order
| Model | Dimension(H x D) | Description | Compatibility | ||
| Rack Enclosures | Wall Mount Enclosures | 2-Post (4-Post) Open Frame Racks | |||
| RAMCABLEDUCT1U | 1U | 1U Horizontal Metal Cable Manager - 16 Slots Duct with Cover | √ | √ | √ |
| RAMCABLEDUCT2U | 2U | 2U Horizontal Metal Cable Manager - 16 Slots Duct with Cover | √ | √ | √ |
| RAPCABLEDUCT1U | 1U | 1U Horizontal Plastic Cable Manager - Finger Duct with Cover | √ | √ | √ |
| RAPCABLEDUCT2U | 2U | 2U Horizontal Plastic Cable Manager - Finger Duct with Cover | √ | √ | √ |
| RACABLEDUCT1UHD | 1U | 1U High Capacity Horizontal Cable Manager - T-Finger Duct with Hinged Cover | √ | √ | √ |
| RACABLEDUCT2UHD | 2U | 2U High Capacity Horizontal Cable Manager - T-Finger Duct with Hinged Cover | √ | √ | √ |
| RAFPCABLEDUCT1U | 1U | 1U Horizontal ALL Plastic Cable Manager - Plastic Duct with Cover | √ | √ | √ |
| RAFPCABLEDUCT2U | 2U | 2U Horizontal ALL Plastic Cable Manager - Plastic Duct with Cover | √ | √ | √ |
| RAFPCABLEDUCT1UDS | 1U | 1U Horizontal ALL Plastic Cable Manager with Double-Sided - Plastic Duct with Cover | √ | √ | √ |
| RAFPCABLEDUCT2UDS | 2U | 2U Horizontal ALL Plastic Cable Manager Double-Sided- Plastic Duct with Cover | √ | √ | √ |
| RAMCABLERING1U | 1U | 1U Horizontal Metal Cable Manager - Metal Ring Type | √ | √ | √ |
| RAMCABLERING2U | 2U | 2U Horizontal Metal Cable Manager - Metal Ring Type | √ | √ | √ |
| RAPCABLERING1U | 1U | 1U Horizontal Plastic Cable Manager - Flexible Ring Type | √ | √ | √ |
| RAPCABLERING2U | 2U | 2U Horizontal Plastic Cable Manager - Flexible Ring Type | √ | √ | √ |
| RACABLEDUCTVRT1U | 0U x 6Ft | 6-ft. (1.8 m) Vertical Cable Manager - Finger Duct with Cover & Tool-less Mount, 2pcs per Pair | √ | √ | |
| RACABLERINGVRT1U | 0U x 6Ft | 6-ft. (1.8 m) Vertical Cable Manager - Flexible Ring Type & Tool-less Mount, 2pcs per Pair | √ | √ | |
| RACABLETRAY3IN42U | 3 inch x 21U | 3-inch High Capacity Vertical Cable Manager for 42U 30 in. Wide Server Racks,2pcs per pair | √ | ||
| RACABLETRAYM24 | 600mm | Power Cable trough for 24 in. enclosures | √ | ||
| RACABLETRAYM30 | 750mm | Power Cable trough for 30 in. enclosures | √ | ||
| RACABLETRAYN24 | 600mm | Data cable partition for 24 in. enclosures | √ | ||
| RACABLETRAYM30 | 750mm | Data cable partition for 30 in. enclosures | √ | ||
| RACABLELADDER6IN3M | 6 inch x 3M | 6 in. Wide Cable Ladder,1.5 meters per section, 2 sections per pair | √ | ||
| RAMBRUSHVRT6 | N/A | Mounting Rails brush strips for 30 in. wide enclosures, qty.6 | √ | ||
| RAMSCHANNEL | N/A | Horizontal cable side channel (18 in. to 30 in. adjustment) for routing cable front-to-back between the standard wide rack mounting rails | √ | ||
| RALBAR | N/A | 19inch Rack Mount L-Shaped Tie Bars | √ | √ | √ |
| RALBAR2INCH | 19"x2" | Lacing Bar Cable Management with 2 inch offset | √ | √ | √ |
| RALBAR4INCH | 19"x4” | Lacing Bar Cable Management with 4 inch offset | √ | √ | √ |
| RALBAR5INCH | 19"x5" | Lacing Bar Cable Management with 5 inch offset | √ | √ | √ |
| RAWLBAR2INCH | 19"x2" | Horizontal Cable Lacing Bars with 2 inch Offset | √ | √ | √ |
| RAWLBAR4INCH | 19"x4” | Horizontal Cable Lacing Bars with 4 inch Offset | √ | √ | √ |
***************Note********************
-
AZE provides a wide range of server rack accessories including airflow management,cable management,rack shelves and rack cooling fans, they are compatablity with rack enclosures, wall mount enclosures, open frame racks and outdoor enclosures.
-
White (RAL7035) or black(RAL9005) options
Options
48U Colocation Server Rack 2 x 23U 600mm Wide x 1070mm Deep Enclosure with Sides Black
42U Server Rack Cabinet 800mm Wide x 1200mm Deep with Side Panels
48U Colocation Server Rack 2 x 23U 600mm Wide x 1200mm Deep Enclosure with Sides Black
24U 750mm Wide x 600mm Deep IP55 Outdoor Cabinet with 800W Air Conditioner
12U 600mmWide x 450mmDeep Wall Mount Rack Cabinet Enclosure
45U Server Rack Enclosure 600mm x 1070mm w/ Sides Black
18U 600mm Wide x 600mm Deep IP65 Wall Mount Outdoor Cabinet
12U 600mmWide x 600mmDeep Wall Mount Rack Cabinet Enclosure
Application
Rack Cable Management products organize cable runs in and outside the rack. Products include rings and ducts, vertical and horizontal cable managers, troughs and ladders.The cable manager helps eliminate cable stress for your server rack enclosure cabinet or outdoor cabinet enclosure,which can organize power or data cables within a rack or enclosure.
