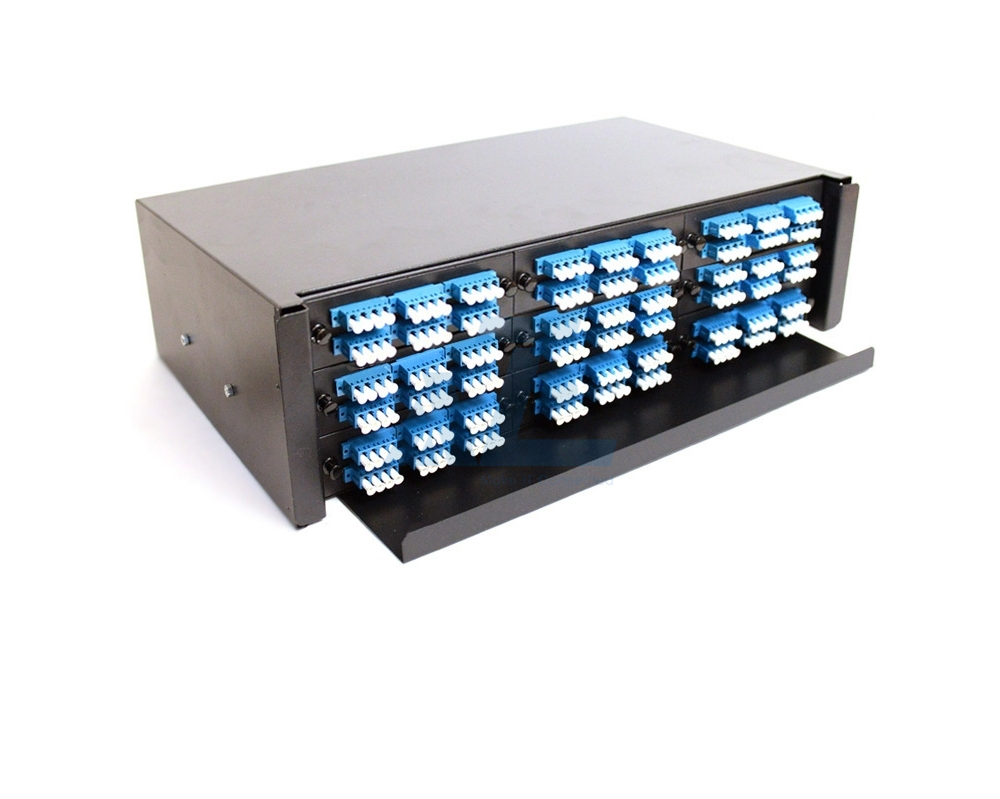

3U 19inch Rack Mount Fiber Optic Patch Panel with Adapter Panel Plates

Model : OF3UMPANELxx

AZE's 3U rack mount fiber enclosure, which can house 9pcs fiber adapter panels. It provides high density flexible system to maximize rack space utilization and minimize floor space.

Accepts up to 9pcs fiber adapter panels
Up to 324 LC Fibers in 3U
Space Saving 3U Design, Mount to Standard EIA 19" Rack Rails
Made of SPCC Steel, Solid and Durable

Compare Quote

3U Rack Mount Fiber Enclosure for Holding 9pcs Adapter Panel Plates

AZE's 3U 19 inch rack mount fiber enclosure, which can house 9pcs fiber adapter panels. It provides high density flexible system to maximize rack space utilization and minimize floor space.It is simplify for the operation, the top cover could be removed, which makes the cable management more convenient.

The rack mount fiber enclosure is 3RU (Rack Unit) Patch Panel, a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.3U Fiber Optic Patch Panel is a 19 inch rack mount fiber optic enclosure for managing fiber optic cables in machine room in Fiber to the home application.

3U Rack Mount Fiber Optic Patch Panel is used as fiber termination panel for optical fiber wiring, fixation, splicing and patching.Based on different adapter type, there are LC fiber patch panel, SC fiber patch panel, FC fiber patch panel, ST fiber patch panel, etc.

Specification

Number of Rack Spaces	3U	Fiber Count	Up to 324 Fibers (LC)
Product Type	Fixed Enclosure	Cable Entry Direction	Side and Rear Cable Entry
Loaded	Unloaded	Material	Steel, Powder-coated Black
Mounting Type	Rack Mount	Installation	Standard EIA 19" Rack Rails
Dimensions (HxWxD)	5.19''x19.00''x11.17'' (132x482.6x283.6mm)	Application	Accepts 9 x FHD Panels/Cassettes

How to Order

Options

42U Server Rack Enclosure 600mm x 1070mm w/ Sides Black

1U Rackmount 17inch LCD Console with Integrated 16 port IP KVM Switch(1-Local / 1-Remote Access)

18U 750mm Wide x 600mm Deep IP55 Outdoor Cabinet with 500W Air Conditioner

45U Server Rack Enclosure 600mm x 1070mm w/ Sides Black

1U rackmount basic rack PDU, 120V/15A, (8) NEMA 5-15R outlets

Rack PDU 2G, Metered, Single Phase,ZeroU, 32A, 230V, (36) C13 & (6) C19

LC UPC to LC UPC Duplex OM4 Multimode Fiber Optic Patch Cable

Application

The 19inch rack mount fiber enclosure is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.

Fiber to the home (FTTH)
Telecommunications
LAN/WAN
CATV
Data Centers
