IEC C13 19inch Basic Rack Mount PDU Socket

Model : PDH1U06C13xx

AZE provides a wide range of PDU( Power Distribution Unit). We have Horizontal 19inch rack mounted Power Distribution Unit or Vertical PDU, 6 to 24 way Rack Mount Power Rail. All of our surge protected PDU/ Power Rails are DIN49440 Standard and suitable for data centre, server racks/ cabinet indoor or outdoor server racks.The Basic PDU Series includes models in 1U and 0U options, with versatile outlet arrangements on the front and/or back.

1U rackmount Germany PDU
Solid Aluminum chassis for durability
2P Circuit breaker or protection /control modules

Compare Quote

PDH1U06C13xx Features

Key Features
Output Connections	(6) IEC C13 Outlet
Nominal Output Voltage	220V ~240V
Nominal Input Voltage	220V ~240V
Input Connections	IEC C14 or IEC 60309 Industrial plug
Cord Length	6ft (1.8meters)

Includes: Installation guide, mounting brackets or hardwares

Features & Benefits

Structure and Configuration
Material	High-grade aluminum or SECC steel
Rack-mountable	Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Wide range of input and output connections	It provides different regions' input or output connection to distribute 120V, 208V, or 230V power to multiple outlets-Australia,British,French,Germany,IEC C13,IEC C19,NEMA 5-15R ,NEMA 5-20R,etc
Availablity function	For protect or control the devices, the PDU provides fuctions of master switch, 1P or 2P circuit breaker,surge protection, meter or overload.

Total cost of Ownership
Low Cost Power Distribution	Provides a number of outlets to bring power to rack equipment at an affordable price.

Our rack PDU are modular designed with IEC standard and suitable for the data center, server racks / cabinets indoor or outdoor server racks, they are also suitbale for home offices, small or large offices situation or industrial environment.

PDU Outlet Type Options

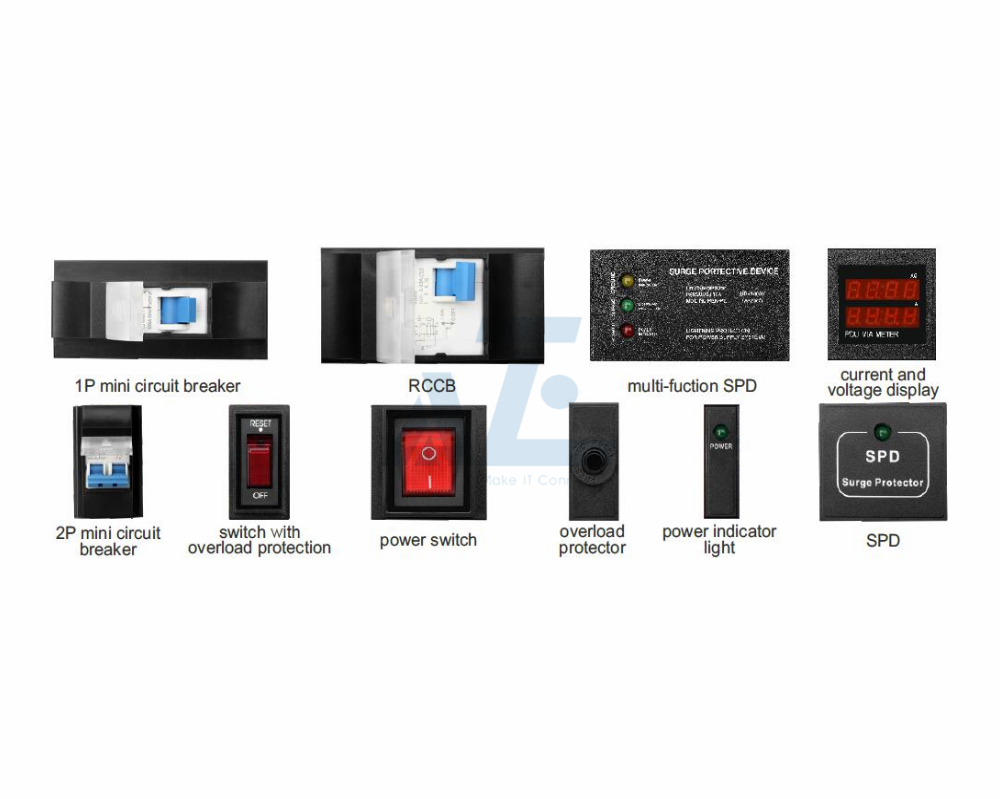

PDU Function Module Options

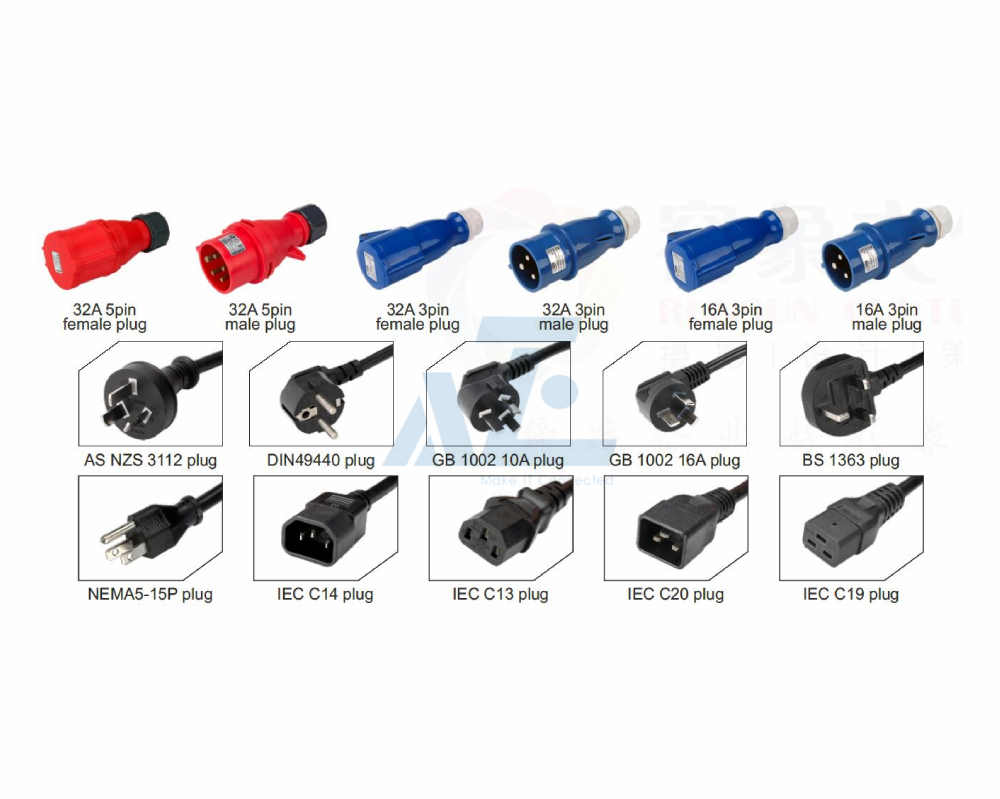

PDU Input Plug Selection Options

PDU Application

Specification

Physical
Color	Black
Material	Aluminum
PDU Form Factor	1U Horizontal

Input
Input Voltage	220~240V
Maximum Input Current	16Amp
Plug Type	Germany
Input Phase	Single Phase
Input Cord Length	6ft.

Output
Output Receptacles	(6) Germany DIN49440
Output Nominal Voltage	220~240V
Function	2P circuit breaker or protection /control modules

Environmental
Operating Temperature	0°C to 550°C (32°F to 131°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)

Certifications
Approvals	RoHS
Safety	CE

Warranty
Standard warranty	1 Year

How to Order

Options

6U 600mm Wide x 600mm Deep IP65 Wall Mount Outdoor Cabinet

1U 8 Port Rackmount KVM Console- Integrated KVM Switch w/ 19inch LCD monitor

36U 750mm Wide x 600mm Deep IP55 Outdoor Cabinet with 3000W Air Conditioner

48U Server Rack Cabinet 800mm Wide x 1070mm Deep with Side Panels

12U 600mm Wide x 600mm Deep IP55 Outdoor Server Cabinet Enclosure

16U 30inch Wide x 30inch Deep IP55 Outdoor Enclosure with 300W Air Conditioner

1U 17inch Rack LCD KVM Console

Metered-by-outlet Switching Rack PDU,3 Phase,(21) C19 & (3) C19

27U NEMA 4 NEMA 4X Integrated Outdoor Server Cabinet Stainless Aluminum Enclosure

Application

The PDU provides reliable power distribution from a UPS system, generator, or utility source to electronic equipment, servers, and network/telecom devices

Network closet
Data center
Industrial environments
KVM console
Server Racks
Outdoor Enclosures

Video

Power distribution FAQs

Power distribution is a key component to any IT environment. Whether yours is a small deployment or a data center housing hundreds of racks full of IT equipment, understanding your environment and power needs allows you to begin making the right choices about your power distribution equipment.
