Metered Rack PDU,0U,Single Phase,15Amp,120V,(21) NEMA5-15R Outlet

Model : RPMEV11-25NEMA515R

The power distribution unit provides a rack mountable power solution to server cabinet or telecom cabinet or other electronic devices at an affordable price.Individual outlet level power metering provides a view of the power distributed to equipment within the enclosure and the ability to analyze component power trends to perform capacity planning.It provides active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads

0U Vertically mount
Single phase, NEMA5-15R outlet
Solid aluminum chassis for durability
Input power metering

Compare Quote

RPMEV11-25NEMA515R Features

Key Features
Output Connections	(25) NEMA5-15R
Nominal Output Voltage	100V, 125V
Nominal Input Voltage	100V, 125V
Input Connections	NEMA5-15P
Cord Length	10ft (3meters)

Includes: Installation guide, Rack mounting brackets,

Features & Benefits

Structure and Configuration
Material	High-grade aluminum or SECC steel
Rack-mountable	Includes horizontal, vertical and toolless-mount options,puts the power in the racks near the equipment.
Wide range of input and output connections	It provides different region input or output connection to distribute 120V, 208V, or 230V power to multiple outlets-Australia,British,French,Germany,IEC C13,IEC C19,NEMA 5-15R ,NEMA 5-20R,etc

Availability Functions
Alarm Thresholds	Define alarm thresholds in order to avoid overloaded IT, providing network and visual alarms inform the user of possible problems.

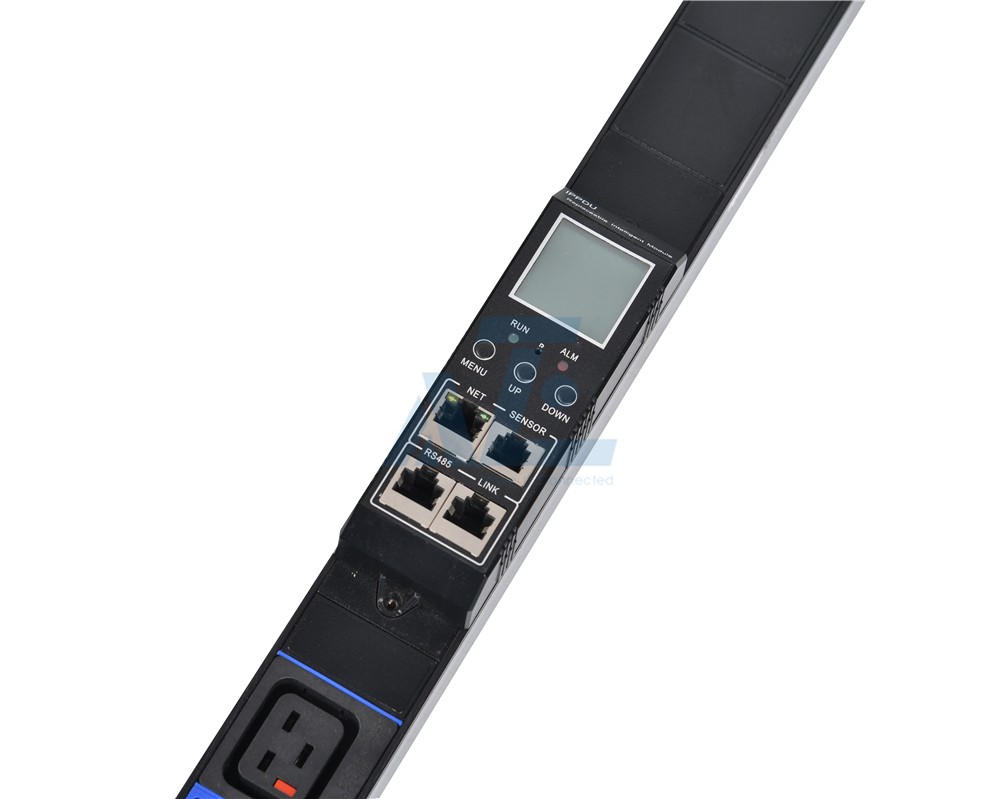

Local Current Monitoring Display	The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the PDU
Remote Management Capabilities	Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time.

Specification

Physical
Color	Black
Material	Aluminum
PDU Form Factor	0U Vertical

Input
Input Voltage	100V~125V
Maximum Input Current	15Amp
Plug Type	NEMA5-15P
Input Phase	Single Phase
Input Cord Length	10ft.

Output
Output Receptacles	(25) NEMA5-15R
Output Nominal Voltage	100V~120V
Function	Input metered

Environmental
Operating Temperature	0°C to 550°C (32°F to 131°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)

Certifications
Approvals	RoHS
Safety	CE

Warranty
Standard warranty	1 Year

How to Order

Options

42U Server Rack Cabinet 800mm Wide x 1200mm Deep with Side Panels

1U metered and switched rack PDU, 120V/20A, (8) NEMA 5-20R outlets

24U 30inch Wide x 30inch Deep IP55 Outdoor Enclosure with 800W Air Conditioner

36U 30inch Wide x 30inch Deep IP55 Outdoor Enclosure with 3000W Air Conditioner

42U Server Rack Cabinet 800mm Wide x 1070mm Deep with Side Panels

1U Rackmount 16 Port 17.3inch LCD KVM Console HD 1080p

1U Rackmount 19inch LCD Console with Integrated 16 port IP KVM Switch (1-Local / 1-Remote Access)

Application

The PDU provides reliable power distribution from a UPS system, generator, or utility source to electronic equipment, servers, and network/telecom devices

Network closet
Data center
Industrial environments
KVM console
