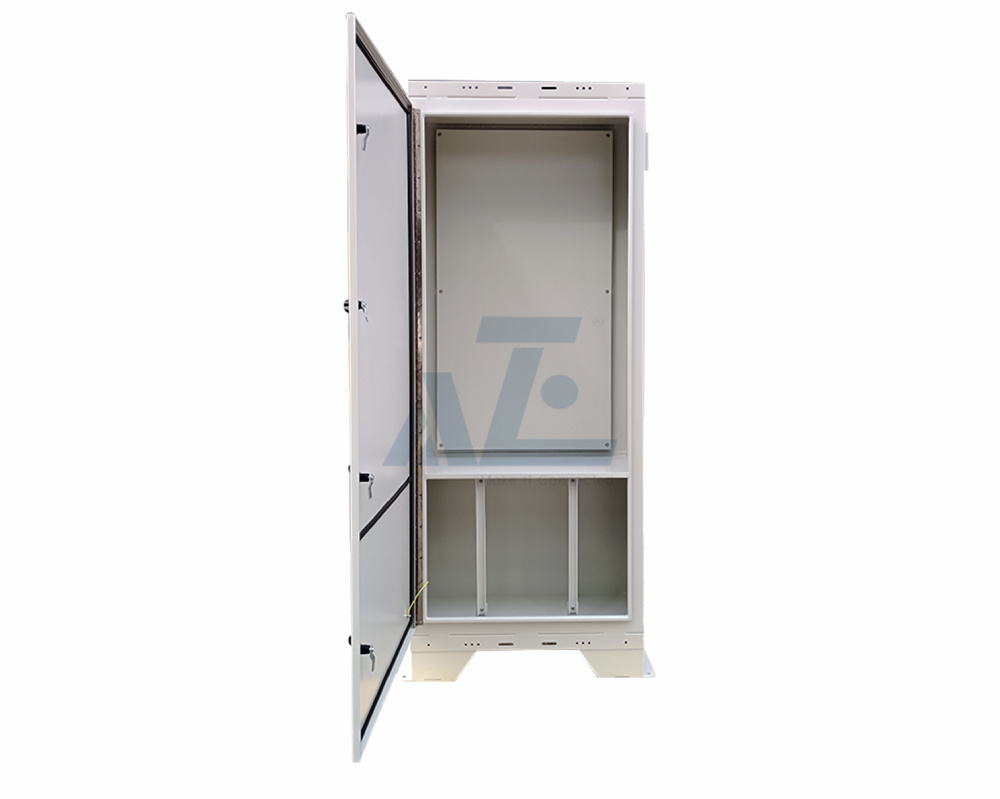

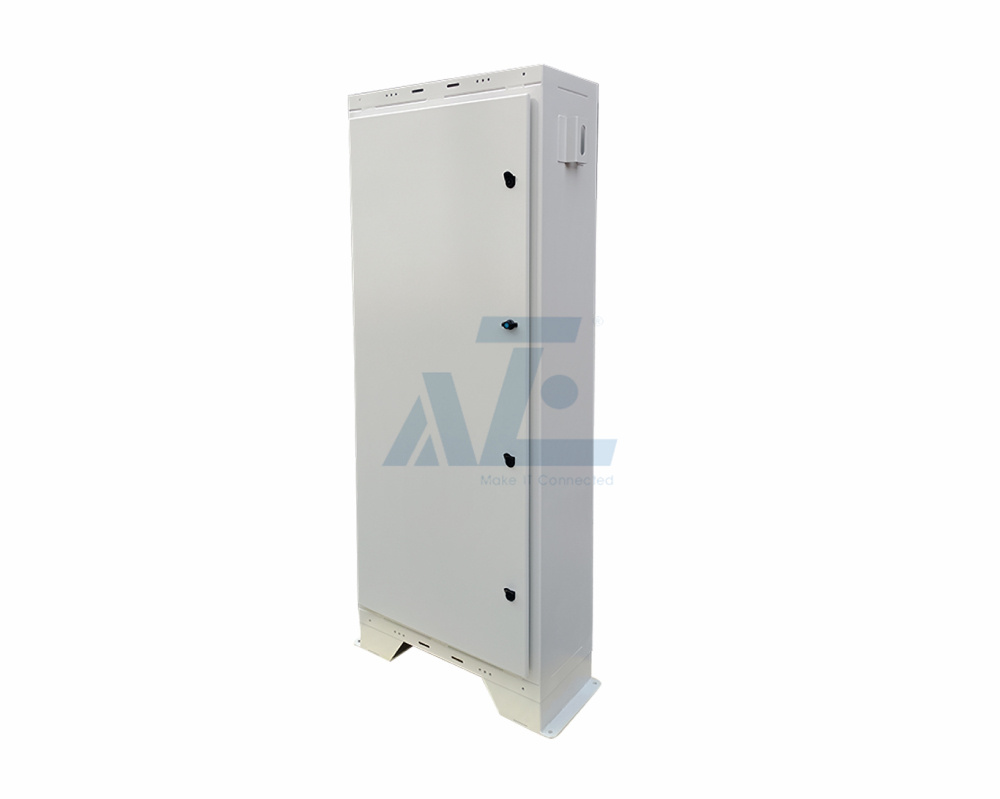

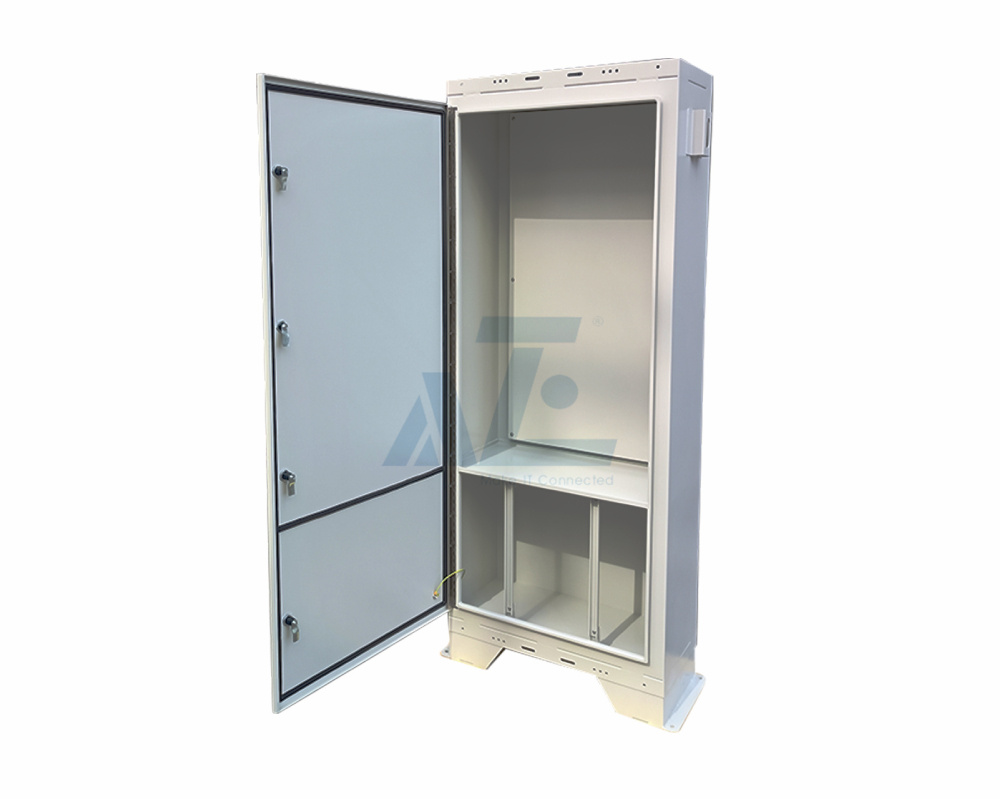

NEMA 4/4X Outdoor Aluminum Solar Energy Battery Cabinets Enclosures

Model : RODB683013

Premium solutions for housing batteries with supporting equipment. NEMA3R rated, white power-coated or mill-finished aluminum enclosures feature hinged, key-lockable doors with dust covers on locks and gasketed door. Passive cooling ventilation. All the range of battery enclosures are compatible with our universal backplates and Power Ready Express Control Panels. Each enclosure is capable of holding a variety of battery configurations.

Fits for lead acid batteries
88″H × 30″W × 13″D
Hinged, key-lockable doors, and a gasketed door
NEMA3R outdoor rated and aluminum with powder-coated finish
Optional backplates for multiple inverters/chargers plus extra shelf space. (sold separately)
Optional electrical knockout or cable glands.

Compare Quote

This aluminum lithium battery storage cabinet, designed to protect and expand with your growing energy storage needs. It is an efficient energy storage solution that can maximize your space utilization with these sleek and reliable cabinets. Keep all your PCE equipment and additional components in one accessible cabinet out of the elements.

Design and build your own BESS with our full enclosures

This battery cabinet provides a compact solution for your complete solar powered battery system with minimal impact on walkways along the side of your home. The flexible design suits a range of inverters to be installed in the same weatherproof enclosure with our batteries.

Features

As a leading manufacturer in China, we design and produce outdoor battery cabinets with different materials,our Battery Enclosures are available in various sizes and configurations for housing batteries and support equipment, engineered specifically for the PV industry but suitable in a wide variety of applications.

Most of our enclosures are designed to NEMA3R and rated for outdoor use. White powder coating and quality manufacturing ensure a robust enclosure that will survive even the harshest conditions. Sunwize Power & Battery also offers custom enclosures to meet any specification.

One battery or multiple batteries that need a place to live, sheltered from the elements and kept dry and secure. This place is called a "battery enclosure", or what is essentially a vented box made from aluminum or fiberglass or steel. This product is perhaps more commonly called a "solar battery box" but is also referred to as a "pole mount battery box". Some battery boxes are large enough to be considered battery cabinets and are usually made from painted steel.

Outdoor Battery enclosures keep your batteries safe from weather and safe from theft. Battery enclosure boxes also feature locking machanisms that protect unauthorized people against possible electrical dangers if they happen to be tampering with your equipment.

Our battery enclosures can be pole-mounted or ground-mounted and are suitable for indoor and outdoor applications.

Features & Benefits

Compatiblity
Rack Systems Compatible	Compatible with a variety of AZE's rack accessory products to provide the ability to create a complete rack system
EIA-310 19in Rack Mounting Compatibility	Compatibility with all EIA-310 compliant 19" equipment.

Function Design
Fully welded design	Fully welded design for strength and durability
Harsh environment(Waterproof)	Rain hood and high-grade polyurethane door joint strip for waterproof features
Harsh environment(Dustproof)	Air conditioner for keep airflow circulation between inside and outside cabinet, with filter and vented holes on the door
Locking Doors	Front door with safety,burglary-resisting 3-Point locking mechnical system(rear door is optional)
Cable access	Pre-cutting cable opening holes, with cable gromment or gland options
Equipment mounting rails	Equipment mounting rails provide EIA 19" mounting space
Floormount Plinth	Bottom plinth will be mounted on the ground

Agility
Adjustable mounting rails	19" mounting rails installed, can be adjusted in deep to adapt devices
Ready to be installed	Fully assembly unit are ready for installation

Safety
Electrical grounding	Front door (or rear door) are grounded to the frame of the enclosure.

Specification

Environmental
IP (Ingress Protection) Rating	IP55,NEMA 4,NEMA 4X
Working Temperature	-40～55℃

Physical
Color	GREY RAL7035
Material	Galvanized steel(Aluminum/stainless steel/Color coated steel optional)
Unit Dimensions (WxDxH)	23.63inches x 42.13inchesx78.5inches
Unit Weight	281lbs.
Shipping Dimensions(WxDxH)	26.00inchesx45.50inches x85.00inches
Shipping Weight	336lbs.
Weight Capacity (static load)	1000lbs.

Electronics
Cooling	6800BTU Cabinet Air Conditioner (Heat Exchanger/Thermoelectric Cooler(TEC) Optional)
Heating	As optional
Fans	DC48V
Power	PDU(Basic or Smart),AC/DC Power,Built-in Power Optional
Sensors	Door Sensor/Water Sensor/Temperature & Humidity sensor/Smoke sensor/Tilt & Shock sensor
Monitoring	EMS,KVM Switches,Smart PDU

Certifications
Approvals	UL Standard 60950-1/CSA 22.2C, EN60529/10.91,EIA/ECA-310-E, IEC 294-2, RoHS
Safety	CE

Warranty
Standard warranty	1 Year

How to Order

Find solar battery boxes and enclosures for industrial off-grid solar power systems. AZE has the right solution and make IT happen!

Heavy batteries demand a solar battery box with extra strength and durability. In order to protect outdoor batteries from weather and damage, AZE manufactures custom NEMA 3R enclosures. Solar batteries require certain conditions to maintain their productivity and also require air flow control provided by louvered vents, not just for cooling the solar battery enclosure, but also for the release of potential gases that the solar battery gives off.

Each Outdoor Energy Battery Enclosure is manufactured to meet size and weight load requirements
- Solar Battery Box that ccommodates 1 Battery, 2 Batteries, 3 Batteries, 4 Batteries, 6 Batteries, 10 Batteries and more.
Outdoor Electrical enclosures that hold solar batteries can be designed as a pole mount or free standing installation
Different metals options are used for outdoor electrical enclosures:
- Most commonly made from aluminum these enclosures can also be fabricated using galvanized steel, carbon steel, stainless steel
- Surface finish choices (powder coat or galvanized)
The most common NEMA rating for solar battery boxes is NEMA 3R
If required, your enclosure can be built with separate sealed compartments for batteries and electronics
Custom Enclosure Fabrication can be used on enclosures that require multiple protection requirements (i.e. Enclosure that requires NEMA 4/4X protection for electrical components but also requires NEMA 3R for a Solar Battery)
Designs that incorporate additional levels of security for high vandalism situations

AZE designs and manufacturers each solar & outdoor energy battery enclosure to meet these and other crucial requirements at pricing that ensures the viability of alternative energy projects.

**********Notes**********

Shipping Option: Assembly unit with carton or wood pallet
Waterproof outdoor solar engery battery enclosures IP Rating: IP55 rated or NEMA 3R,NEMA 4, NEMA 4X rated available
Outdoor battery enclosures Material Options: Cold metal Steel, galvanized steel, stainless steel or aluminum steel available.
Outdoor battery rack cabinet Climate Control options: such as cooling fans, air conditioner , heat exchanger and Thermoelectric Cooler (TEC) available.

No.	Item	Specifications
1	Air Conditioner	AC110V or 220V/DC48V, Cooling Capacity 300W-5000W
2	Heat Exchanger	DC48V, Heat transfer 40W/K-200W/K
3	Thermoelectric Cooler (TEC)	DC48V, Cooling capacity 100W-300W
4	Fan	AC110/220V or DC 48V

A wide range of server rack accessories ,Fiber optics cabling solutions,Server Rack PDUs and KVM solutions compatablity
Grey(RAL7035) or other customize colors available
Outdoor Energy Storage Cabinet optional accessory parts

No.	Item	Specifications
1	Fan	AC110/220V or DC 48V
2	Power Supply	AC INPUT: 32A/1P MCB or 63A/2P MCB DC OUTPUT: 16A/1P MCB
3	Environment Monitoring Unit	48VDC Communication port: RS485, TCP/IP, SNMP optional
4	Door Sensor	Monitor door open status inside cabinet and provide real time alarm.
5	Water Sensor	Monitor water status inside cabinet and provide real time alarm.
6	Tilt & Shock Sensor	Monitor shock status inside cabinet and provide real time alarm.
7	Temperature & Humidity Sensor	Monitor temperature and humidity inside cabinet and provide real time alarm.
8	Smoke Sensor	Monitor smoke status inside cabinet and provide real time alarm.

Options

6800btu outdoor cabinet Air Conditioner- 2000W Air Conditioner-AC powered

1U metered by outlet with switching rack PDU, 230V/16A, (8) C13 outlets

11900btu telecom enclosure Air Conditioner- DC48V 3500W Air Conditioner

1U rackmount basic rack PDU, 120V/15A, (8) NEMA 5-15R outlets

1U 16 Port Rackmount KVM Console- Integrated KVM Switch w/ 19inch LCD Monitor

18U 30inch Wide x 30inch Deep IP55 Outdoor Enclosure with 500W Air Conditioner

TEC Air Conditioner for outdoor enclosure cabinet- 200W Air Conditioner-DC powered

Metered by outlet with switching rack PDU,Three Phase,400V/32A, (8) C13 outlets

1U Rackmount 4 Port 15.6inch FHD LCD KVM Console

36U 32inch Wide x 32inch Deep NEMA 4 Outdoor Enclosure with 10200BTU Air Conditioner

Application

AZE's outdoor battery enclosures and battery racks are specifically designed for the renewable energy industry, to hold different sized batteries from all of the major battery manufacturers. Many of the enclosures have the added versatility of a pole mounting capability, in addition to a tamper-resistant hardware option for added security.

Industrial off-grid solar power sytems
Oil & gas patch
Traffic control systems
Battery Engery Storage
