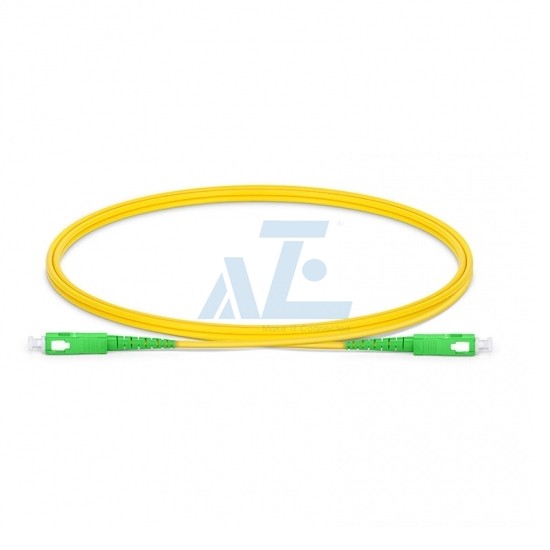

SC APC to SC APC Simplex OS2 Singlemode 2.0mm Fiber Optic Patch Cable
Model : SM-SCA-SCA-SX-xM
The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient.
- Connector Type: SC-SC
- Polish Type: APC/APC
- Fiber Mode: OS2 9/125μm
- Wavelength: 1310/1550nm
- Length Options: 0.5M,1M,2M,3M,5M,10M,15M,20M,30M,50M or custom sizes
High Quality and Cost-Effective 9/125μm Single Mode Fiber Optic Cable
Fiber patch cables are the thin, flexible fibres of glass that carry data, telephone conversations and emails high speed all over the world in a matter of seconds with much less interference than copper patch lead. Fibre Optic cables need less amplification to boost signals so they travel better over longer distances.
AZE's OS1 / OS2 single mode fiber optic patch leads provide the connection from Ethernet 10Mbit/s to 10Gbit/s Gigabit Ethernet, they are the cost-effective way to replace your copper-based patch leads.Single mode Fiber Optics leads is the cost-effective way of your cabling solution.
Specification
| Connector Type | SC-SC | Polish Type | APC/APC |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) | Minimum Bend Radius | 10mm |
| Attenuation at 1310 nm | 0.36 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
| Fiber Count | Simplex | Cable Diameter | 2.0mm |
| Cable Jacket | PVC | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -20~70°C | Storage Temperature | -40~80°C |
How to Order
Options
42U Server Rack Enclosure 600mm x 1070mm w/ Sides Black
1U Rackmount 17inch LCD Console with Integrated 16 port IP KVM Switch(1-Local / 1-Remote Access)
18U 750mm Wide x 600mm Deep IP55 Outdoor Cabinet with 500W Air Conditioner
45U Server Rack Enclosure 600mm x 1070mm w/ Sides Black
1U rackmount basic rack PDU, 120V/15A, (8) NEMA 5-15R outlets
Rack PDU 2G, Metered, Single Phase,ZeroU, 32A, 230V, (36) C13 & (6) C19
Application
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
- Cross-connect patching
- Backbone application in building
- Termination enclosure for equipment patching
- Equipment to equipment patching
- Supports high-speed multi-channel data, voice & video applications
