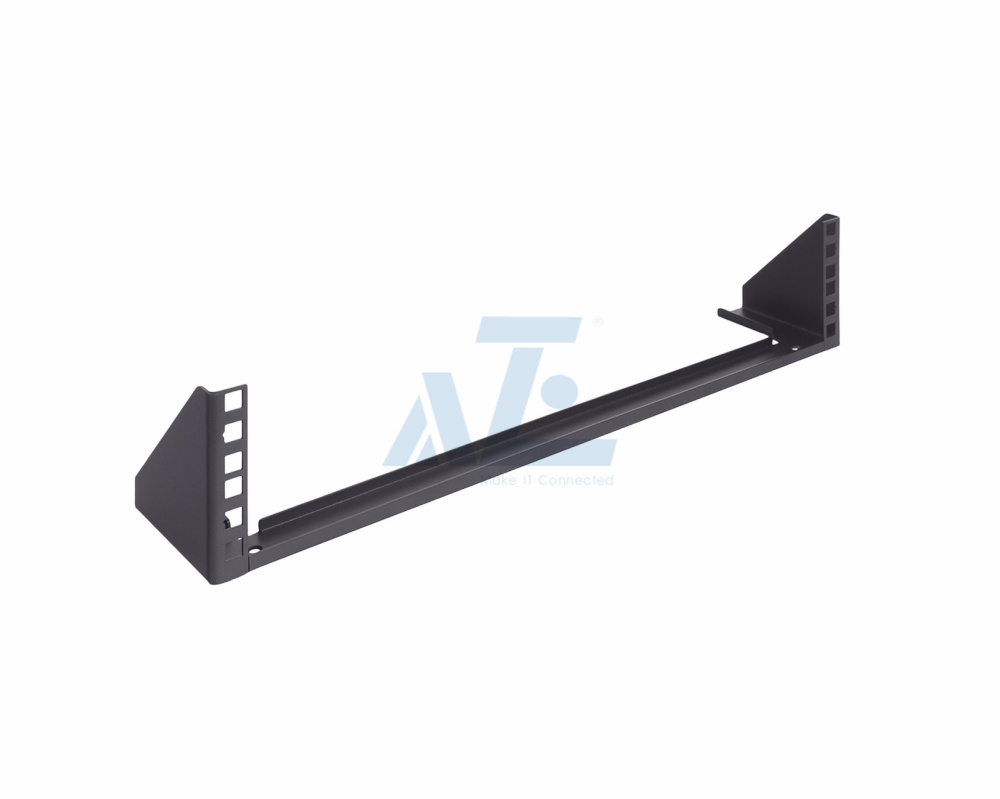

2U 19in Low Profile Open Verticall Wall Mount Bracket
Model : RWBV2U12
The multi-use low profile 2U vertical rack mount bracket enables servers, networking switches, patch panels or AV equipment to be mounted vertically for easy equipment access where a full rack is not desirable.
- 2U rack height,vertical mounted
- Convenient solution for all your small/home office needs
- Sturdy cold rolled steel construction
- Constructed to EIA-310 19 inch data rack standards
2U 19in Low Profile Open Verticall Wall Mount Bracket
RWBV2U12 Features
| Key Features | |
| Rack Height | 2U |
| Rack Mounting Width | 19" |
Features & Benefits
- Vertical Mount Design for low profile devices
- Sturdy cold rolled steel construction
- Wall mounting holes are 16” center to center for greater stability, and mounting to standard wall studs
Specification
| Physical | |
| Color | Black |
| Unit Dimensions (WxDxH) | 19.7inches x 12inchesx4.5inches |
| Unit Weight | 10lbs. |
| Shipping Dimensions(WxDxH) | 20.7inchesx13inches x5inches |
| Shipping Weight | 11lbs. |
| Certifications | |
| Approvals | EIA/ECA-310-E, RoHS |
| Safety | CE |
| Warranty | |
| Standard warranty | 1 Year |
How to Order
| MODEL | Dimension | Description |
| RWBH1U12 | 501mmW x 300mmD x 1U | 1U 19in Hinged Wall Mount Bracket for Patch Panels-12in Deep |
| RWBH2U12 | 501mmW x 300mmD x 2U | 2U 19in Hinged Wall Mount Bracket for Patch Panels-12in Deep |
| RWBH4U12 | 501mmW x 300mmD x 4U | 4U 19in Hinged Wall Mount Bracket for Patch Panels-12in Deep |
| RWBV1U12 | 501mmW x 300mmD x 1U | 1U 19in Steel Vertical Wall Mount Equipment Rack Bracket-12in Deep |
| RWBV2U12 | 501mmW x 300mmD x 2U | 2U 19in Steel Vertical Wall Mount Equipment Rack Bracket-12in Deep |
| RWBV4U12 | 501mmW x 300mmD x 4U | 4U 19in Steel Vertical Wall Mount Equipment Rack Bracket-12in Deep |
-
Shipping Option: Flat pack
-
Vertical rail types: 19" or 23" rails, with mounting holes options of #10-32 threaded holes, #12-24 threaded holes or M6 square holes
-
Floor mount with options: 2" castors or 3" HD castors optional
-
A wide range of server rack accessories compatability
-
White (RAL7010) or black(RAL9005) options.
Options
32U 32inch Wide x 32inch Deep NEMA 4 Outdoor Enclosure with 5100BTU Air Conditioner
Aisle Containment Solution with 42U 600mmWide x 1200mmDeep Server Rack Enclosure
36U 32inch Wide x 32inch Deep NEMA 4 Outdoor Enclosure with 6800BTU Air Conditioner
Data Center Aisle Containment Solution- 42U 600mmWide x 1200mmDeep Server Enclosure
18U 24inch Wide x 18inch Deep NEMA 4 NEMA4X Outdoor Enclosure
42U Server Rack Enclosure 600mm x 1070mm w/ Sides Black
12U Low-profile Switch-depth Wall Mount Rack Enclosure Cabinet, Hinged Back
12U 24inch Wide x 18inch Deep NEMA 4 NEMA 4X Outdoor Enclosure
48U Server Rack Cabinet 800mm Wide x 1200mm Deep with Side Panels
Application
Wall mount Rack Bracket offers a versatile storage solution, allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with the wall) to save space.Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack.Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework.
