Data Center Aisle Containment Solution- 42U 600mmWide x 1200mmDeep Server Enclosure

Model : MAC24-RS42612

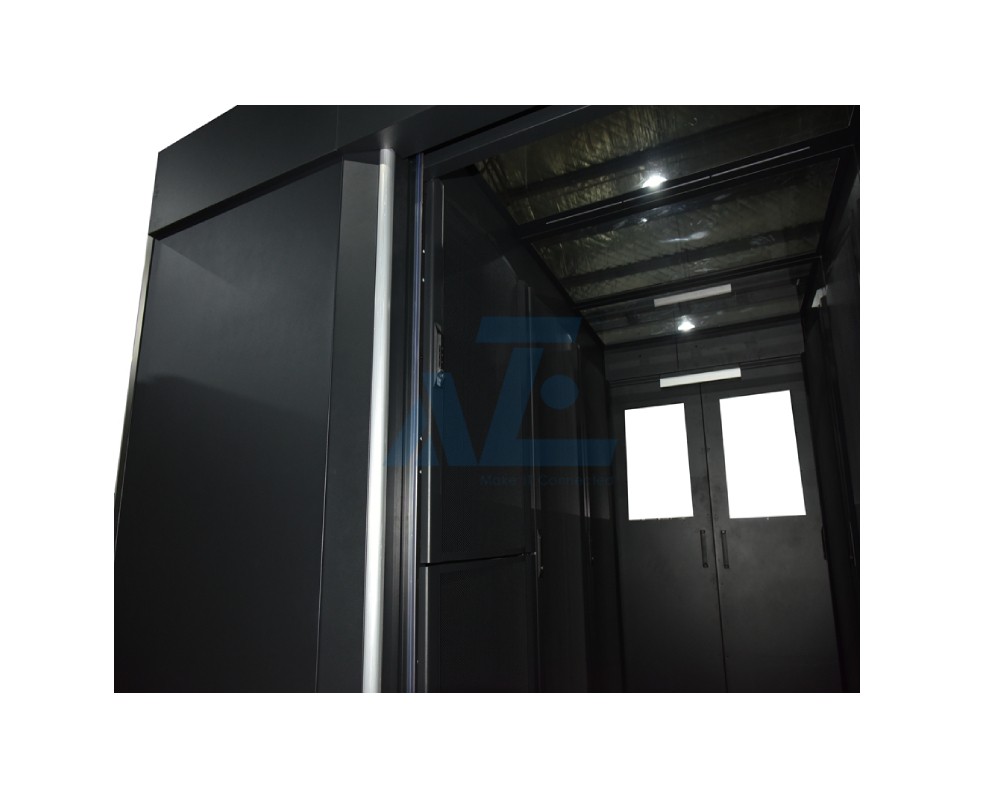

Aisle Containment is an intelligent thermal containment solution designed to increase cooling system efficiency while protecting critical IT equipment and personnel.It offers superior airflow management,lower the data center energy demands and save on energy costs, also can provide a safe and efficient environment for IT equipment and can be deployed in zones or modules to gain the benefit at either the rack or row level.

42U 600mmWx1200mmD server rack
Dual sliding door
Adapts to varying rack heights, aisle widths, and rack depths
Aisle containment ceilings, walls and end of rows are designed to help maintain optimal operating temperatures in server rooms and data centers
Modular design, flexibity,fast deployment
Customization available

Compare Quote

MAC24-RS42612 Features

Key Features
Rack Size	42U 600mmW x 1200mm
Aisle Width	1200mm/42inch

Includes: Top roof ceiling, top cable management and other server rack accessories.

Features & Benefits

Compatiblity
Rack Systems Compatible	Compatible with a variety of AZE's rack accessory products to provide the ability to create a complete rack system
EIA-310 19in Rack Mounting Compatibility	Compatibility with all EIA-310 compliant 19" equipment.
High capacity cable management systems options	Compatibility with high capacity cable management that can attach to rack mounting rails inside enclosures aligning with U-space marks and provide channels for cabling.
Power option	Compatibility with PDUs- basic rack PDU or intelligentrack PDU,provide the device powering or remotely metering,switching the outlet to control devices
Cooling option	Compatibility with in-row based cooling unit or room cooling unit.
Control option	Compatibility with IP-based KVM to control the devices together with intelligent rack pdu
Monitor option	Compatibility with EMS to monitor the site environment such as temperature,humudity,door open/close status,alarm,etc.

Containment Design
Server Rack	We supply server rack,colocation server rack option to store your IT equipments,it comes with standard design and can deploy any units that you need
Containment components	Design based on unit rack, the containment components can build a closed space that cooling heat that generated by the equipment,saving the energy.

Convenience
Half-height side panels	Lockable Half-height quick release side panels reduce size and weight for easy handling and access to equipment.
Eyebolt lifting holes options	Eyebolt holes at the top corners of the enclosure frame allow the enclosure to be lifted for movement and enclosure placement using eyebolt lifting mechanisms.
Perforated front and rear door with curved profile	Perforated front and rear doors provide high perforation rating
Quick release doors	Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple lift-off design.
Equipment mounting rails	Equipment mounting rails provide EIA 19" mounting space
Cable access openings with pre-installed brushes	Roof includes openings with brush strips pre-installed to allow for data cable passthrough and provisions for air containment
Easily removable cable access roof	Roof can be removed with simple pull-pin hinges for access during equipment installation or even with cabling already in place and routed through the cable openings. Once removed the roof is reversible to reposition the larger cable openings for power distribution plugs and connectors.

Safety
Electrical grounding	The roof, side panels and front and rear doors are grounded to the frame of the enclosure.
Load Capacity	A proven frame design, heavy-gauge mounting rails, and heavy-duty casters provide for a 3000 lb (1500 kg) static (levelling feet) and 2250 lb (1023 kg) dynamic (castor) load ratings (42U-52U).

Agility
Adjustable mounting rails	The vertical mounting rails can be adjusted in 1/2 inch increments covering virtually any mounting requirement for IT equipment. Easy alignment feature integrated into the enclosure mounting rail and side brace for quick alignment verification
Bay brackets hardware with multiple width enclosure alignment	Enclosures include pre-installed joining hardware to join enclosures in a row and provide additional stability to the enclosure. The pre-installed joining hardware includes holes for joining to an adjacent enclosure at 600mm centers or 24in centers depending upon the floor layout.
2" heavy duty castors and adjustable leveling feet from underneath or above	Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench.
Pre-installed full-enclosure height rear accessory channels	Integrated and adjustable rear accessory channel provides zero U mounting locations for toolless accessories. Each channel has two mounting bays to support a combination of up to four accessories such as PDUs and vertical cable organizers.
Split rear doors	Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space.

Specification

Environmental
IP (Ingress Protection) Rating	IP20

Physical
Color	RAL9001 Black or RAL7035 Grey
Rack option	42U 600mmW x1200mmD
Aisle width	1200mm
Aisle end door option	Dual sliding door or mechinical swing door

Electronics
Cooling	In-row cooling or room cooling air conditioner
Power	PDU(Basic or intelligent), or power cabinet
Sensors	Door Sensor/Water Sensor/Temperature & Humidity sensor/Smoke sensor/Tilt & Shock sensor
Monitoring	EMS,KVM Switches,Smart PDU

Certifications
Approvals	DIN41491, DIN41494, EIA/ECA-310-E, IEC 294-2, RoHS
Safety	CE

Warranty
Standard warranty	1 Year

How to Order

Model	Dimension(WxDxH)	Description	Containment Components
RS42612	600mmx1200mmx42U	Data Center Server Rack Enclosure,42U 600mmWx1200mmD,Black or White Color option	Server Rack Enclosure
RS42612CL2-W	600mmx1200mmx42U	2-Bay Colocation Server Rack Enclosure,42U 600mmWx1200mmD,Black or White Color option
RS42612CL4-W	600mmx1200mmx42U	4-Bay Colocation Server Rack Enclosure,42U 600mmWx1200mmD,Black or White Color option
Basic Rack PDU	0U/1U	Provide Reliable Power Distribution to multiple devices from a UPS system, generator or utility (mains) source.	Power Distibution( PDU)
Metered Rack PDU	0U/1U	Provide real-time remote monitoring of connected loads.
Switched Rack PDU	0U/1U	Provide real-time remote monitoring and remote on/off switching control and of individual outlets for power cycling, delayed power sequencing, and outlet use management.
MAC-MD1222	1200mm x 2200mm	Mechnical Aisle End Door, Toughened Glass,with TCP/IP door access locking system	Aisle Doors
MAC-SD1222	1200mm x 2200mm	Sliding Aisle End Door, Toughened Glass,with TCP/IP door access locking system	Aisle Doors
MAC-RC0612	600mmx1200mm	Modular Top Roof Ceiling Kits(included top roof, supporting bracket for top roof,external decoration panel) for the 600mmWide rack and 1200mmWide Aisle	Aisle Roof Ceiling
RACABLETRAYM24	600mm	Power Cable trough for 24 in. enclosures	Top Cabling Accessories
RACABLETRAYN24	800mm	Data cable partition for 24 in. enclosures
RACABLELADDER6IN3M	6 inch x 3000mm	6 in. Wide Cable Ladder, 1.5 meters per section, 2 sections per pair
MAC-MONITORSYS	n/a	Monitor systems for the aisle containment, including the network EMS unit(can provide the data collection, fire system and sound/light alarm and monitor the A/C, UPS, and power systems), software,10inch screen	Monitor Systems
RASENSOR-TH	n/a	Sensor for the temperature and humidity in the aisle	Controllers & Sensors
RASENSOR-SM	n/a	Sensor for the smoke in the aisle
RASENSOR-W	n/a	Sensor for the water in the aisle

Shipping Option: Assembly unit or flat packed
2" castors or 3" HD castors optional for the server rack cabinets
White (RAL7035) or black(RAL9005) server rack enclosures available
A wide range of rack accessories compatablity
The server enclosures can be preconfigured without standard doors and side panels,more configurations are available please contact representative for more information
Server rack enclosure,Colocation Server Rack enclosure, Server Rack PDU,KVMs and Fiber Cabling products available.

Options

1U Rackmount 17inch LCD Console with Integrated 24 port IP KVM Switch(1-Local / 1-Remote Access)

1U Rackmount 19inch LCD Console with Integrated 32 port IP KVM Switch(1-Local / 1-Remote Access)

42U Server Rack Enclosure 600mm x 1200mm w/ Sides Black

42U Server Rack Enclosure 600mm x 1070mm w/ Sides Black

Rack PDU 2G, Metered, Single Phase,ZeroU, 32A, 230V, (36) C13 & (6) C19

1U 19" Black Toolless Airflow Management Plastics Blanking Panel - Qty 10

Airflow Management Blanking Panel Kit (1U, 2U, 4U, 8U)

1U Cantilever Fixed Shelf-14inch

SC UPC to SC UPC Duplex OM2 Multimode Fiber Optic Patch Cable

LC UPC to SC UPC Duplex OM3 Multimode Fiber Optic Patch Cable

48U Colocation Server Rack 2 x 23U 600mm Wide x 1070mm Deep Enclosure with Sides Black

42U 48U Co-Location Server Rack Cabinets with 4 Compartments

Metered by outlet with switching rack PDU,Three Phase,400V/32A, (8) C13 outlets

Outlet Metered Rack PDU,Outlet Switched Rack PDU, 3 Phase, 32A,(21) C19 & (3) C19 outlet

Application

The aisle containment system improves cooling efficiency in hot aisle/cold aisle rack configurations by essentially creating a room within the aisle and keeping hot and cold air separated to make existing air conditioning systems in data center and edge-of-network installations more efficient.It can provides a secure, engery-efficiency environment for your critical IT equipment in the data center room.

Data center/Colocation/Hosting
Edge computing
Cloud compute
Enterprise
Education
Healthcare
